- PWM control, Built-in RS485 & PID function
- 3 skip-Frequency setting, 2 ACC/DEC time S curve setting
- Simple PLC function remote control,
- Pump control automatic energy saving
- Pressure setting & constant pressure control

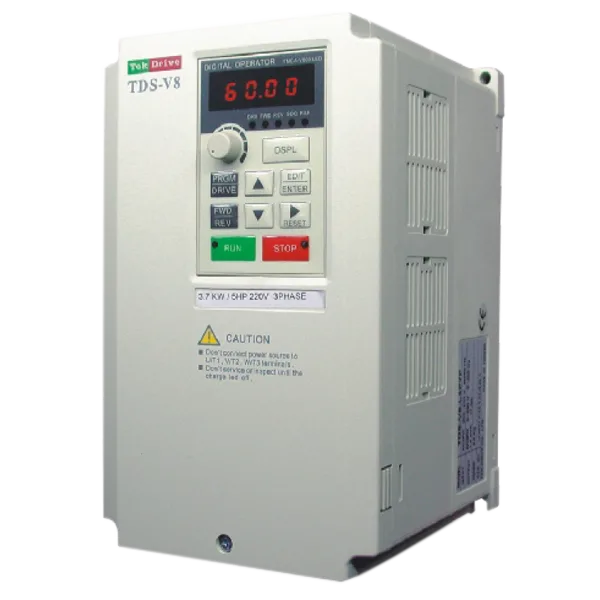

TDS-F8 Frequency Inverter
TDS-F8 Series
Product Specification
| Input Voltage Class | 220VAC Class (Single-Phase)/3 phase | |||
|---|---|---|---|---|
| Model | OP4 | OP7 | 1P5 | |
| Max. Applicable Motor (HP) | 0.5 | 1 | 2 | |
| Max. Applicable Motor (KW) | 0.4 | 0.75 | 1.5 | |
| Output Power |
Rated Output Capacity (KVA) | 1.4 | 2 | 2.7 |
| Rated Output Current (A) | 3.2 | 4.8 | 6.4 | |
| Max. Output Voltage (V) | 3-Phase 200V-230VAC (Proportional to input voltage) | |||
| Max. Output Frequency (Hz) | Through parameter setting (Max. 400Hz) | |||
| Power Source | Single Phase 200V~230VAC (-15%~+10%), 50/60Hz+5% | |||
| Control Characteristics |
Operation Mode | LED operator | ||
| Control Mode | Sine PWM | |||
| Frequency Control Ranges | 0.1Hz~ 400Hz | |||
| Frequency Accuracy | Digital Command: ±0.01% (-10~+40°C), Analog Command: ±1% (at 25±10°C) | |||
| Frequency Command Resolution | Digital Command: 0.01Hz, Analog Command: 0.06Hz/60Hz | |||
| Frequency Output Resolution | 0.1Hz | |||
| Frequency Setting Signal | DC 0-10V/4-20mA | |||
| Acc./Dec. Time | 0.0~999.9sec. (Accel/Decel Time can be set individually) | |||
| Voltage-Frequency Characteristics | V/F Curve can be set through parameter setting | |||
| Basic Control Function | Auto torque Boost, Slip Compensation, Restart after momentary power loss, Energy saving, PID Control, Simple PLC function | |||
| Extra Function | Up/Down operation, Cumulative Power ON & Operation hour memory, 4 different sets of fault status record (Including latest one), RS485 (MODBUS Protocol), Multiple-Pulse Output Port, 1 Analog Output Port | |||
