- Slim size design, no need aux. source, easy for wiring, control only by input Signal 4-20mA
- DIN Rail design easy for installation/dismantling/moving
- Double SCR design with high withstand voltage and current, no electrical interference
- Stop output in case for over temperature that is for protecting SCR and instruction function.
- Big cooling area, sufficient capacity and with indication for over temperature
- Single specification design with wide voltage range 180 ~ 480VAC

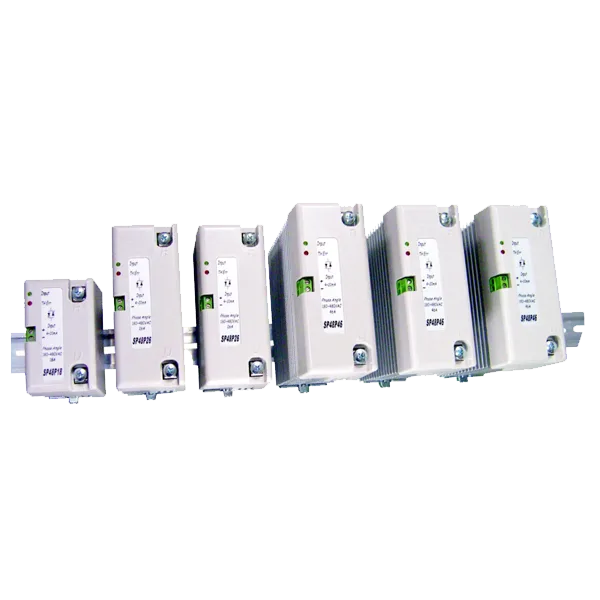

Slim 1 Phase SCR & SSR
SP48P18 | SP48P26 | SP48P36 | SP48P46
Product Specification
| Model No. | SP48P18 | SP48P26 | SP48P36 | SP48P46 |
|---|---|---|---|---|
| Rated Current | 18A | 26A | 36A | 46A |
| Rated Voltage | 180-480VAC | 180-480VAC | 180480VAC | 180 – 480VAC |
| Applicable Fuse | FWC-25A1OF | FWC-32A10F | 45FT | 63FE |
| Outline Dimension | 90L*54W*98H | 130L*54W*98H | 90L*54W*148H | 130L*54W*148H |
| Weight | 0.45KG | 0.6KG | 0.65KG | 0.9KG |
